ExerMeter
Training Session Monitoring with Artificial Intelligence
ExerMeter allows for the monitoring of training sessions through sensor technology and motion recognition using custom artificial intelligence models.
ExerMeter is a training session monitoring system based on sensor technology, motion recognition, and artificial intelligence. The system consists of two hardware devices (Ziven and Pikku) and software with dedicated environments for coaches and athletes.
Athletes
- Receive your training sessions on your phone
- Stay connected with multiple sports professionals
- Track your progress and performance
Coaches
- Create your own AI-based movements
- Design training sessions with a variety of exercises
- Assign training sessions to users
- Monitor your athletes’ performance: exercise repetitions, intensity data, posture, and heart rate respons

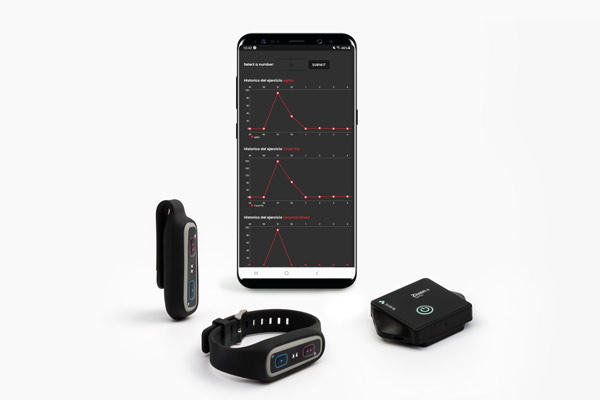

ExerMeter System

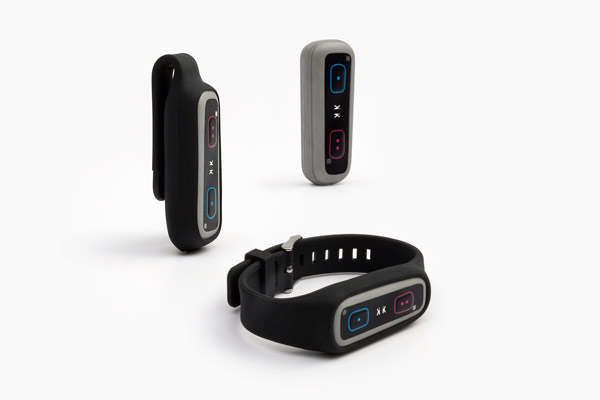

Pikku Devices
Hasta cuatro dispositivos pikku acompañados de sus corresponsientes soportes de pulsera y clip para registrar movimiento, aceleración, inclinación y muchos más.

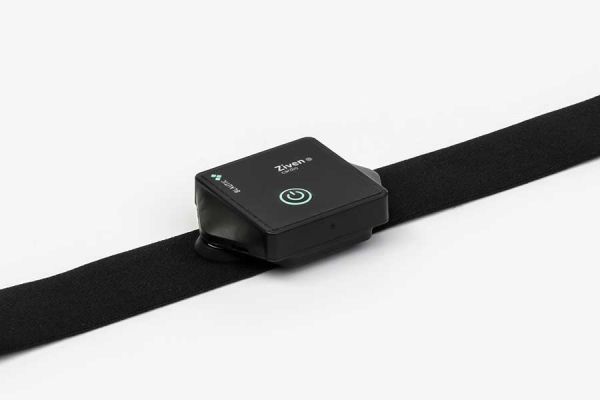

Ziven Devices
A Ziven device combined with a chest strap to record biomedical data.
Software

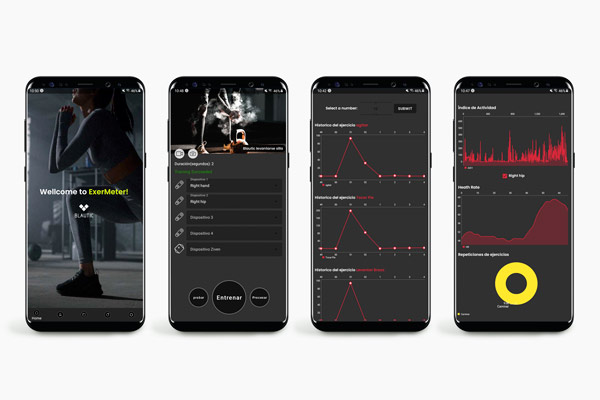

Android app to manage the device, analyze signals, store, and export data.
Functionality
- Wireless Qi charging and USB Type-C (depending on device model)
- On/Off button and control via the app
- Status indicator LED
- Configuration through Android app
- Live data acquisition
- Data intelligence and interpretation
Sensor Technology
- Acceleration
- Angular velocity
- Three-axis inclination
- ECG and heart rate sensingV
| Ziven 1 lead | Ziven 3 leads | |
|---|---|---|
| Power Supply | Rechargeable LiPo battery with wireless Qi charger | Rechargeable LiPo battery via USB Type-C connector |
| Battery Life | 12 hours with continuous data transmission | |
| Indicators | Blue status LED | Blue status LED Red charging LED |
| Communication | Wireless BLE 4.2 Range: 20–30 meters depending on environment |
Wireless BLE 5.2 Range: 100–120 meters depending on environment |
| Sensors |
ECG/EMG/Respiration Rate sensor 24-bit delta-sigma multi-channel simultaneous ADC with programmable gain amplifier (PGA) 3-axis accelerometer Scale ±2g to ±16g 3-axis gyroscope Scale ±500º/s to 2000º/s |
ECG/EMG sensor 3-channel 24-bit delta-sigma multi-channel simultaneous ADC with programmable gain amplifier (PGA) 3-axis accelerometer Scale ±2g to ±16g 3-axis gyroscope Scale ±500º/s to 2000º/s |
| Connections | Connection to electrodes or strap via fixed or wired clips | |
| Interaction | 1 button | |
| Specifications | |
|---|---|
| Power Supply | Rechargeable LiPo battery via microUSB |
| Battery Life | 6 hours with continuous data transmission |
| Indicators | Blue status LED Red charging LED |
| Communication |
Wireless BLE 5.2 Range: 100–150 meters at 125kbps speed (Smartphone or tablet with BLE ≥ 5.0 and Long Range Coded Phy) 20–30 meters at 2Mbps speed (Smartphone or tablet with BLE ≥ 5.0) |
| Motion Sensor | 3-axis accelerometer 3-axis gyroscope |
| Memory | Flash storage memory |
| Interaction | 2 buttons |
| Firmware | Flexible and highly configurable via mobile app |
| Enclosure | Grey color |
Android
Roles: Coach/Physiotherapist and Athlete/Patient
You can download the ExerMeter software by scanning the QR code or clicking here.
