Bio Angles
Measurement of body angles
BioAngles allows the measurement of inclination angles using a Pikku device placed on different parts of the body in two different planes, recording values during the work session. The results can be viewed through graphs or exported to XLS.
BioAngles System

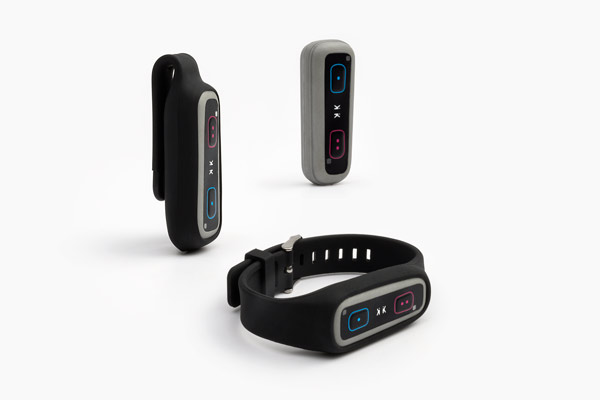

Pikku Devices
The Pikku devices are responsible for collecting sensor data for angle calculation and transmitting it to the APP.

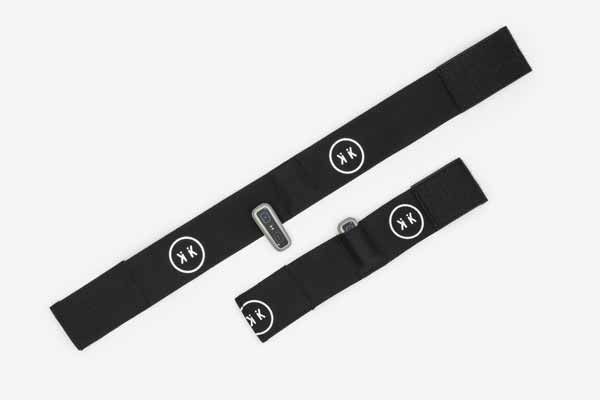

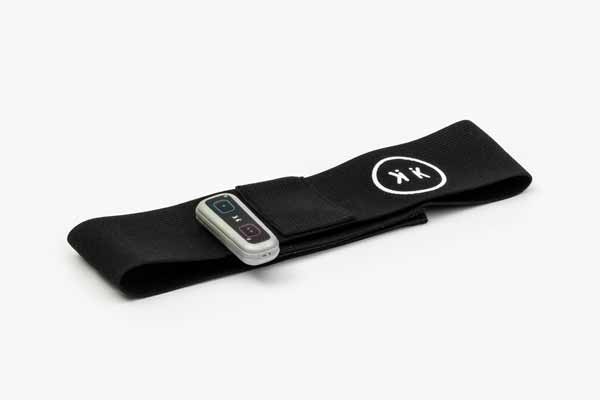

Fixation Systems
Various fixation accessories are available, such as bracelets, clips, and elastic bands, to place the Pikku devices on the most suitable body parts for measurement.

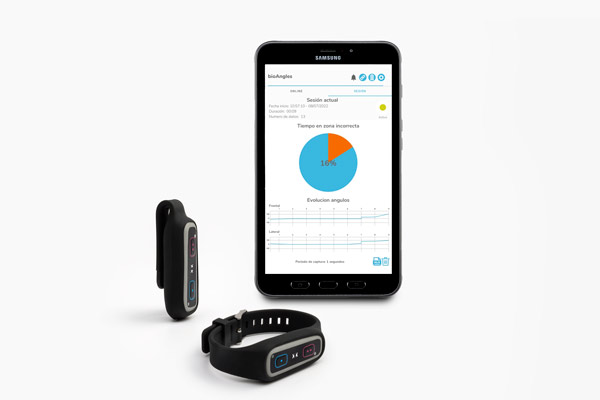

APP
Android application to manage the device and analyze signals, store and export data.
Functionality
- Charging via micro USB with indicator LED
- 2 interaction buttons
- Status indicator LED
- Configuration from Android APP
- Live data acquisition
- Data intelligence and interpretation
Sensing
- Acceleration
- Angular velocity
- Inclination on 3 axes
| Specifications | |
|---|---|
| Power supply | Rechargeable LiPo battery via microUSB |
| Battery life | 6 hours with continuous data transmission |
| Indicators | Blue status LED Red charging LED |
| Communications | Wireless BLE 5.2 Range: 100-150 metros a velocidad 125kbps (Smartphone o tablet con BLE >= 5.0 con Long Range Coded Phy) 20-30 metros a velocidad 2Mbps (Smartphone o tablet con BLE >= 5.0) |
| Motion sensor | 3-axis accelerometer 3-axis gyroscope |
| Memory | Flash storage memory |
| Interaction | 2 push buttons |
| Firmware | Flexible and highly configurable from mobile application |
| Casing | Grey color |
Android Software
You can download the software for BioAngles via the QR code or by clicking here
