Pikku Lab,
motion analysis
Advanced motion capture and analysis system with video and artificial intelligence
Pikku Lab
Pikku Lab is an advanced 3-axis motion capture and analysis system: acceleration, angular velocity, tilt and rotation combined with video and compatible with artificial intelligence models based on image and data analysis that may be of interest to the:
- Biomechanical analysis of movements.
- Comparison with standard patterns (clinical and research).
- Analysis of movements in sports activities
- Static posture analysis (ergonomics)
- Quantitative analysis in injury rehabilitation
- Research studies
For training or research
Who uses Pikku Lab?

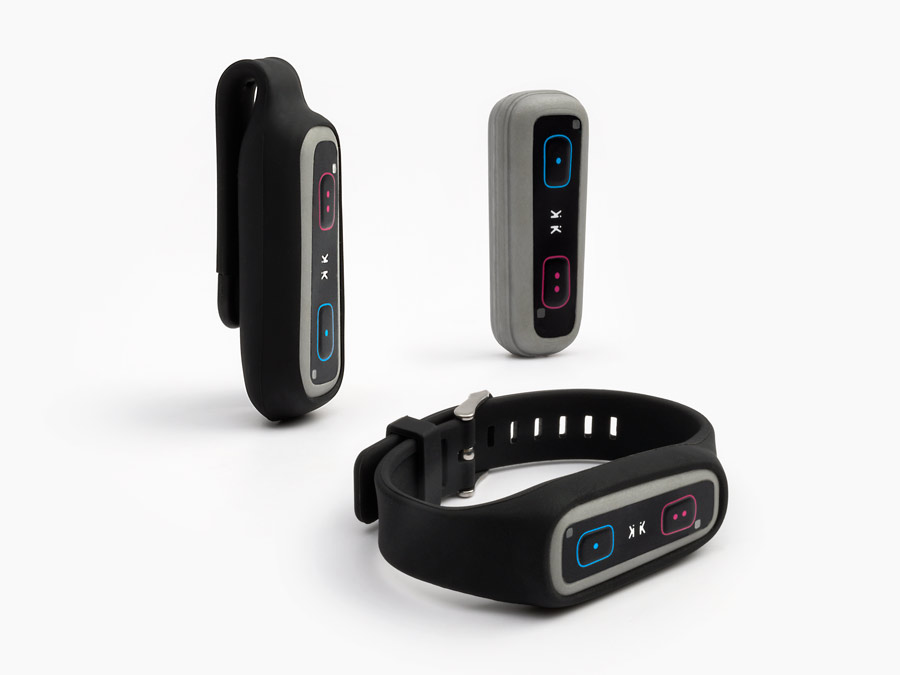

Device characteristics

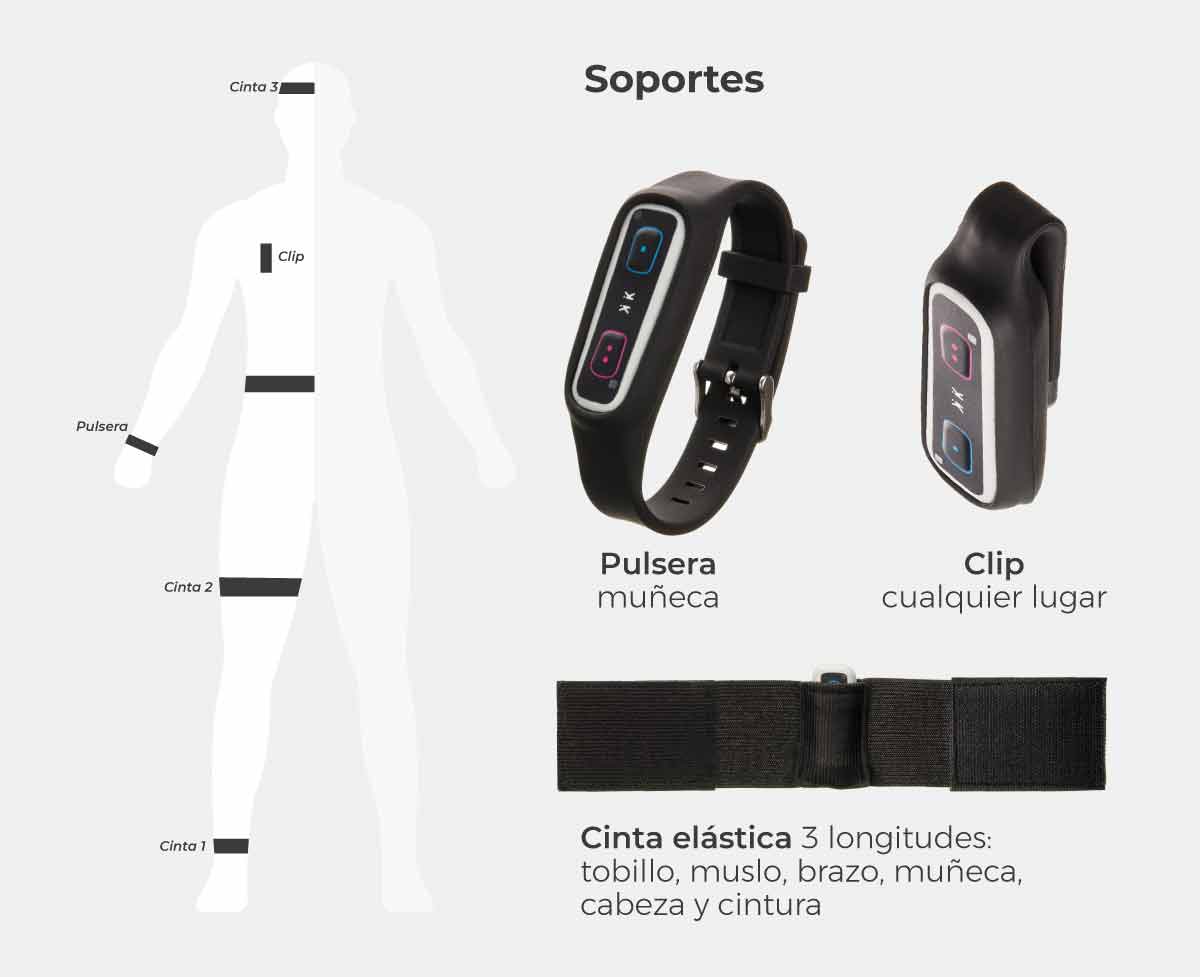

Together with a mobile terminal (phone or tablet) with the App installed, the Pikkulab devices combined with the brackets, are able to collect and transmit detailed movement information combined with the video recorded by the mobile terminal.
- Autonomy of up to 10 hours at full operation.
- Standard micro-usb battery recharge and auto power off.

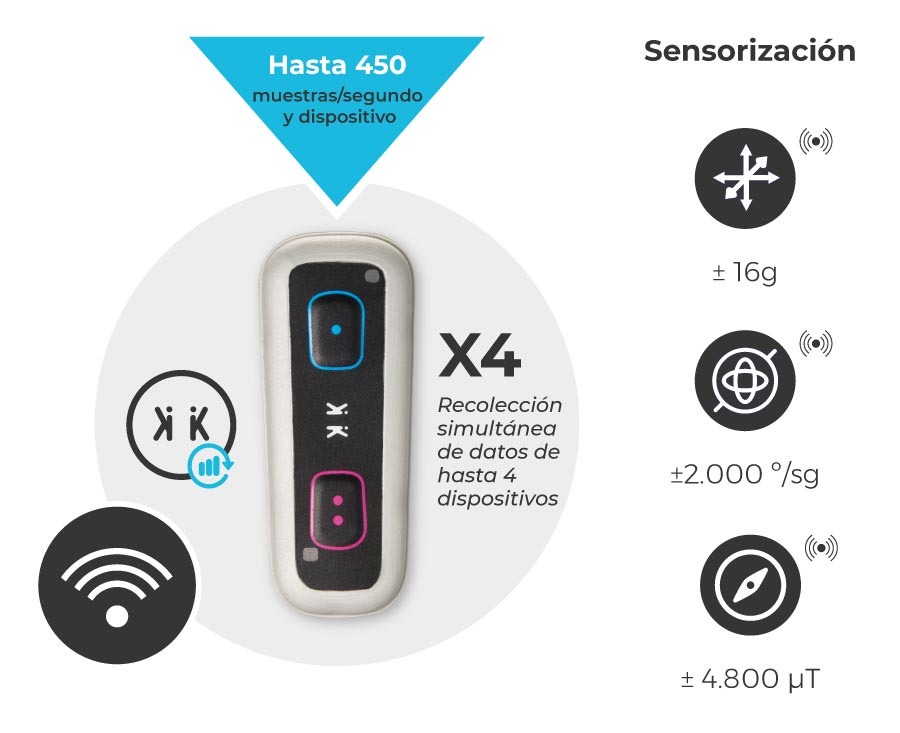

- Sampling rate from 50 to 450 samples/second per device.
- Wireless devices equipped with accelerometer, gyroscope and magnetometer.

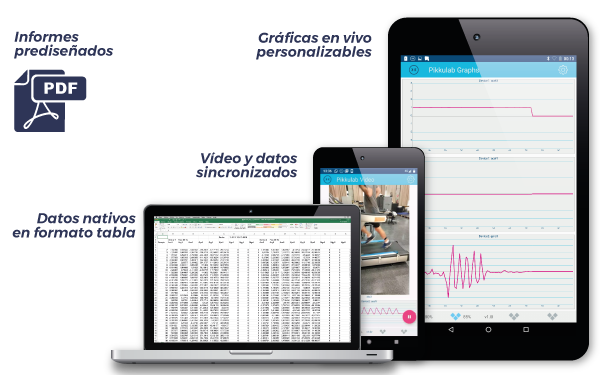

App Functionality
- Collect and visualize data in real time
- Configurable and live graphs
- Simultaneous video and data recording
- Pdf reports of current, minimum, average and maximum values
- Offset and zeroing functions
- Data export in spreadsheet format
- Up to 4 wireless devices connected simultaneously
AI motion recognition
Pikku Lab is equipped with artificial intelligence and can learn to recognize movements and thus help improve or correct them. For Pikku to learn to recognize these movements, we need to teach it how to do so. If you need us to train your Pikku to learn to recognize movements, please contact us.
| Specifications | |
|---|---|
| Power supply | Rechargeable LiPo battery via microUSB |
| Battery life | 6 hours with continuous data transmission |
| Indicators | Blue status LED Red charging LED |
| Communications | Wireless with smartpohes and tablets |
| Motion sensor | 3-axis accelerometer 3-axis gyroscope |
| Memory | Flash storage memory |
| Interaction | 2 push buttons |
| Firmware | Flexible and highly configurable via mobile application |
| Casing | Grey color |
Specific Software
Capture videos of your best plays after they happen.
You can download the Pikku Academy app using the QR code below or by clicking here.
Instrucciones de Uso
Download PDF
PikkuLab App Manual V_6.pdf
