Ziven Cardio
Online cardiac monitoring
and physical activity
Uninterrupted control and signal visualization online or through access to recorded logs
Ziven Cardio
A complete system that enables uninterrupted monitoring of patients’ physical and cardiac activity, visualizing signals online or through access to generated logs.
Ziven Cardio can be configured by healthcare professionals to automatically detect unusual cardiac events in patients, record them, and notify those responsible.
It also allows both patient and professional to capture the patient’s cardiological data for later analysis.
Features
- ECG/EMG 2 channels
- Breathing rate
- 3-axis acceleration
- 3-axis angular velocity
- Wireless charger
Features
- ECG/EMG: 4 channels
- Breathing rate
- 3-axis acceleration
- Angular velocity 3 axes
- External digital sensors: PPG, temperature
- USB Type-C charger

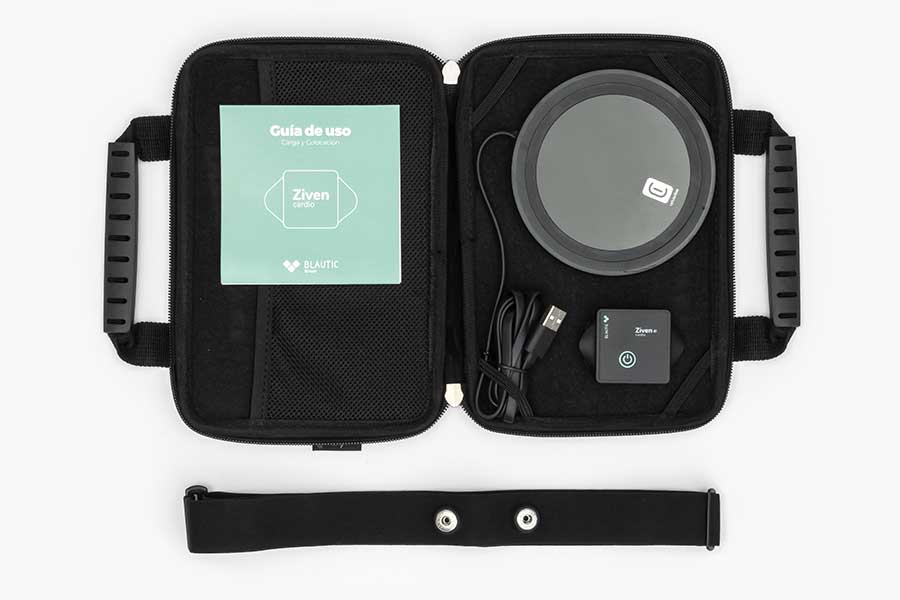

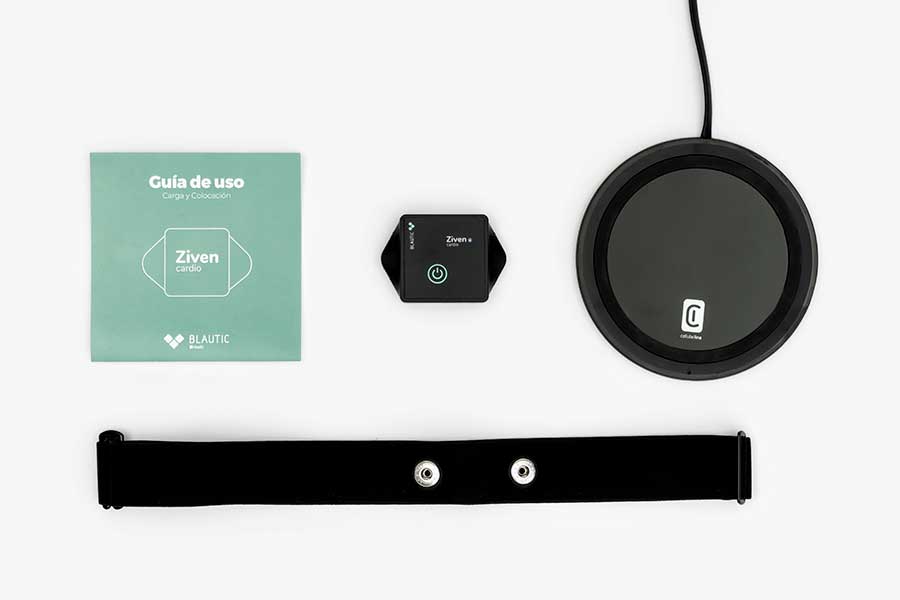

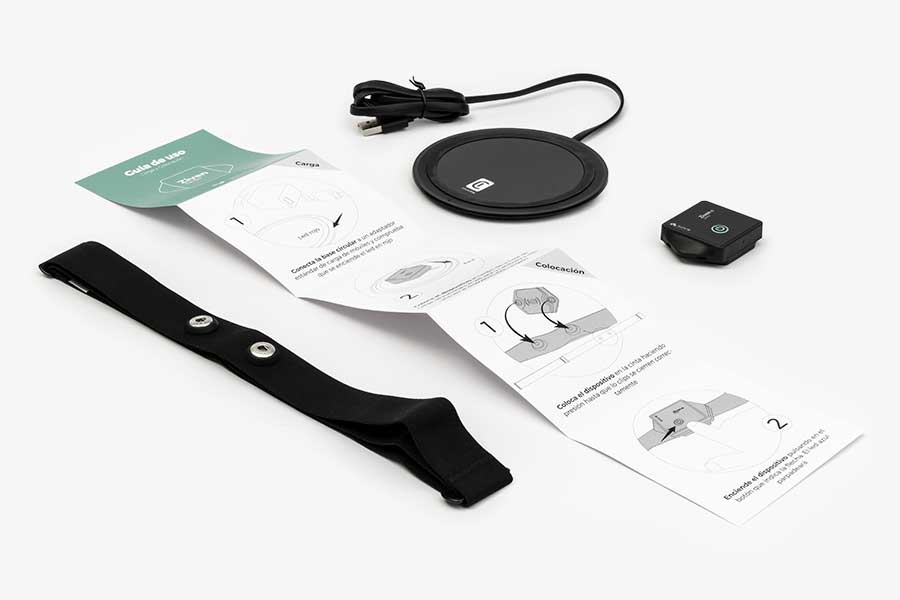

Ziven Cardio System

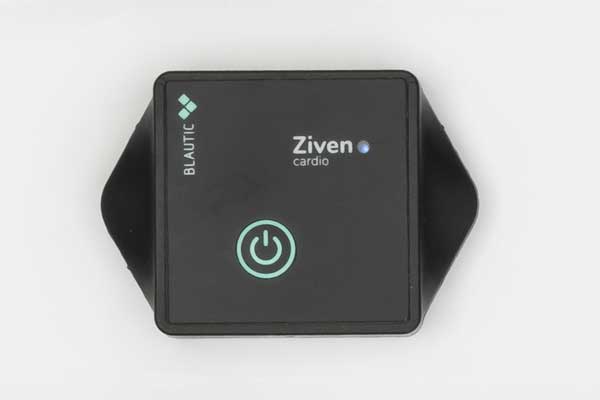

Ziven 1 o 3 derivatives
Compact wireless device with up to 48 hours of full-performance battery life.

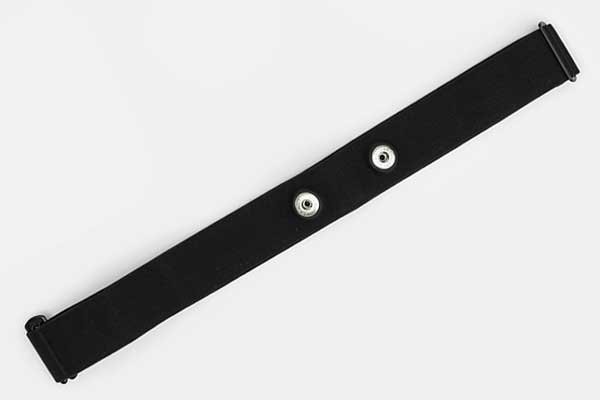

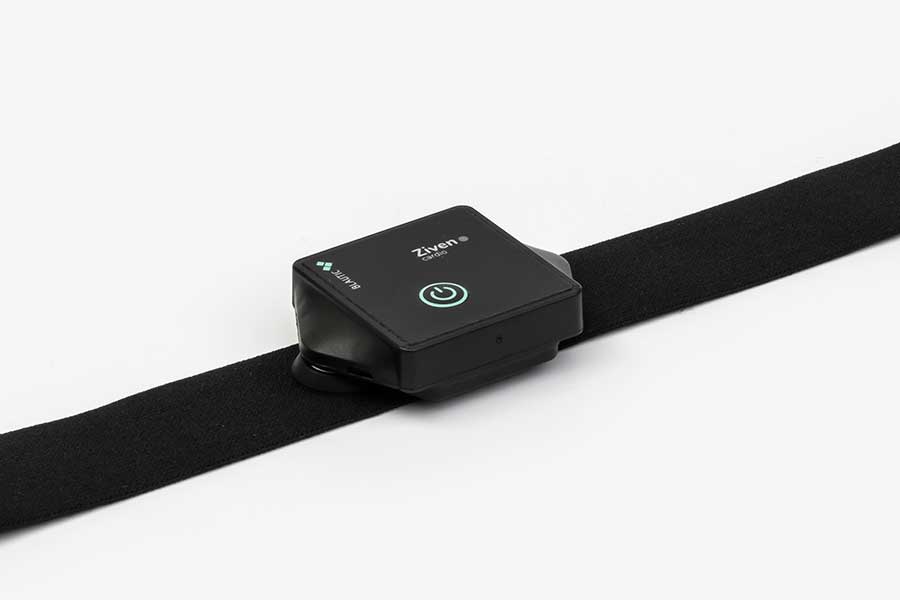

Electrode strap
Elastic and adjustable textile strap, incorporates the electrodes responsible for signal recording

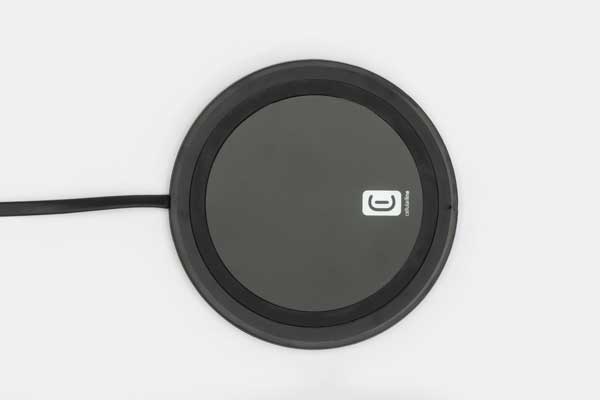

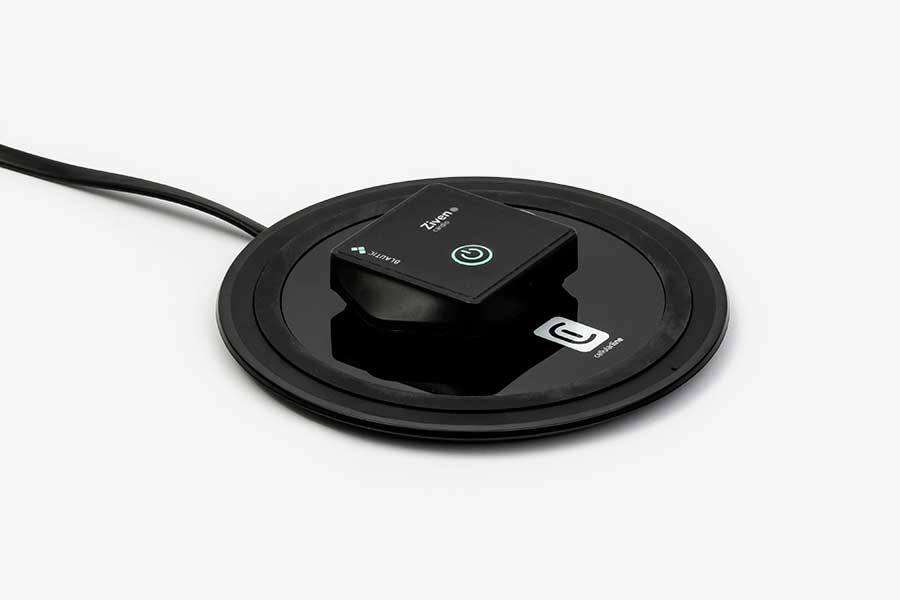

Wireless charger
Wireless charger for full Ziven battery recharge in 1 hour.

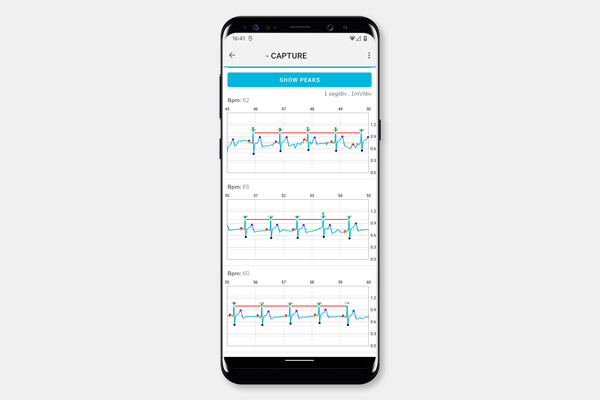

APP
Android application to manage the device, analyze signals, store, and export data
Functionality
- Charging via Qi wireless technology
- Automatic electrode detection
- On/Off button and from the app
- Led indicador de estado
- Configuration from Android APP
- Real-time data acquisition
- Data intelligence and interpretation independent from the network
- Integration with client information systems
- Artificial Intelligence models for signal classification and plotting
- Informes en pdf
- USB Type-C connection for external sensors
- 48 hours of battery life
- Full recharge in 1 hour
Sensing
- Full electrocardiogram. The number of leads depends on the Ziven device used.
- Instant and average heart rate during capture
- Valores HRV calculados de la captura
- Lorenz plot and dispersion marker
- Physical activity index
- Posture during recording
- Pasos realizados en el intervalo de captura
| Ziven 1 lead | Ziven 3 leads | |
|---|---|---|
| Power Supply | Wirelessly rechargeable LiPo battery with Qi charger | Rechargeable LiPo battery with USB Type-C connector |
| Battery Life | 12 hours with continuous data transmission | |
| Indicators | Blue status LED | Blue status LED Red charging LED |
| Communication | Wireless Range: 20–30 meters depending on the environment |
Wireless Range: 100–120 meters depending on the environment |
| Sensors | ECG/EMG/Respiration Rate sensor 24-bit analog-to-digital converter (ADC), delta-sigma, simultaneous multichannel with programmable gain amplifier (PGA). 3-axis accelerometer, range ±2g to ±16g 3-axis gyroscope, range ±500º/s to ±2000º/s |
ECG/EMG sensor 3-channel 24-bit analog-to-digital converters (ADC), delta-sigma, simultaneous multichannel with programmable gain amplifier (PGA). 3-axis accelerometer, range ±2g to ±16g 3-axis gyroscope, range ±500º/s to ±2000º/s |
| Connections | Connection to electrodes or strap via fixed or wired snaps | |
| Interaction | 1 push button | |
